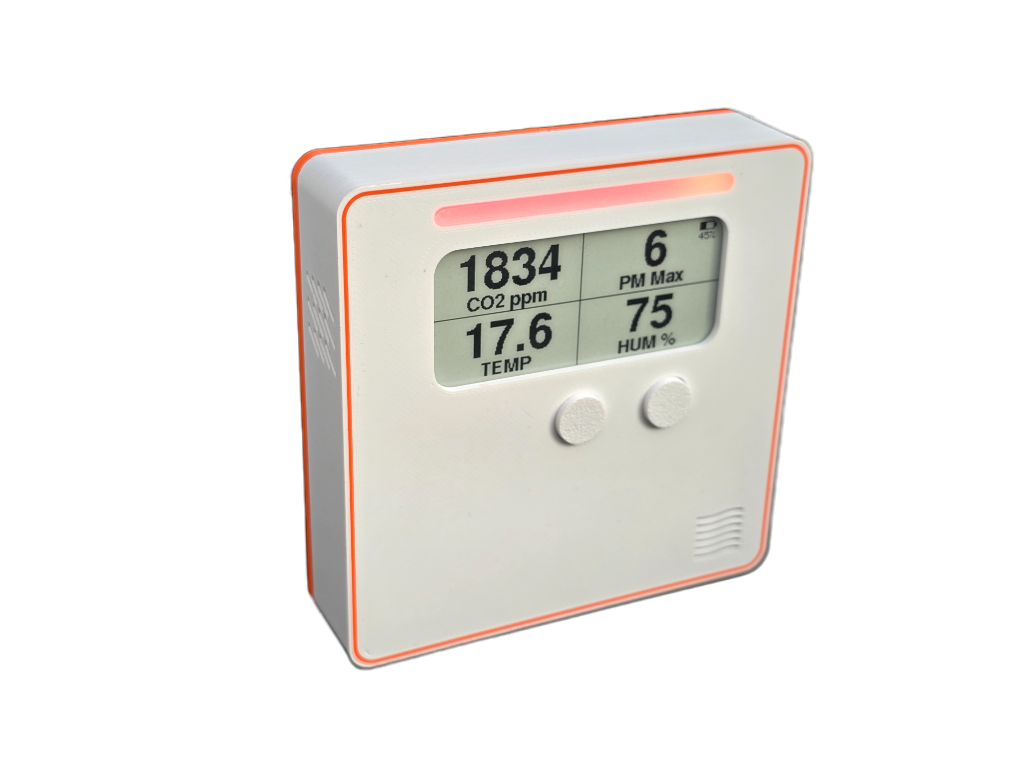

AirVista Kit (DIY version)
€149,00
For enthusiasts who enjoy assembling their own device.
Directly programmable with the USB-C interface. You can create your own custom (open source) software and add accessories with the open-bus i2c connector for additional sensors or controls.
The kit includes a pre-assembled AirVista mainboard PCB , a high quality sensor module SEN-66, a 3D printed enclosure and all required cables pre-assembled.
Assembly requires no soldering.

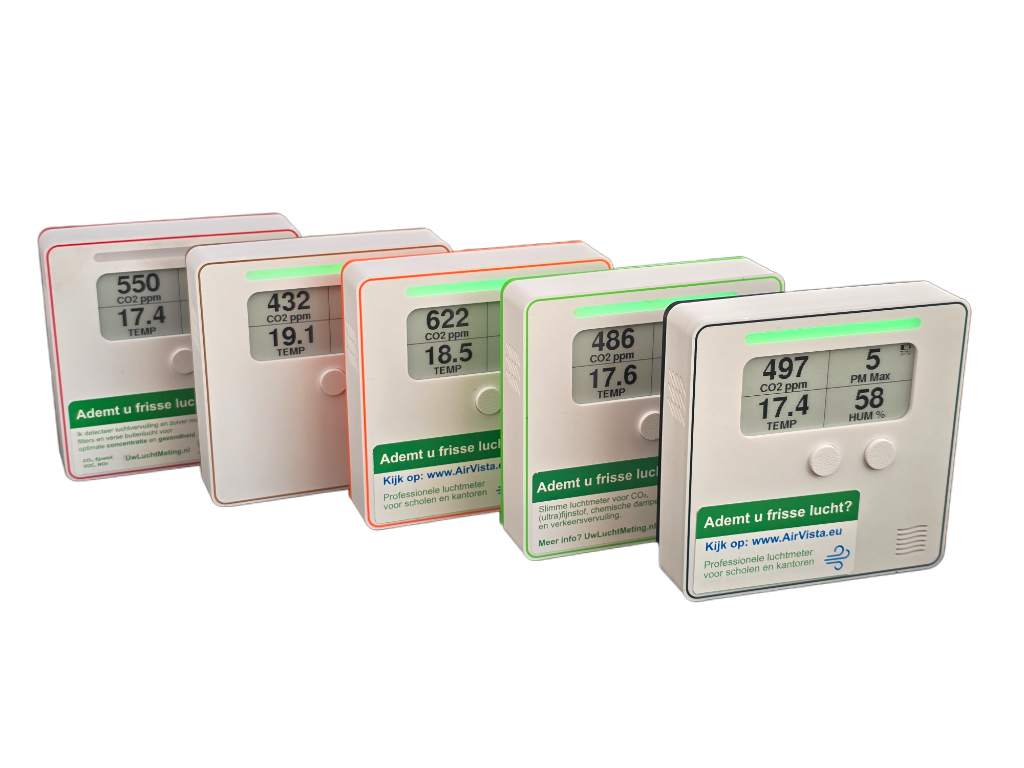

Once assembled, the unit runs the same software as other AirVista models and can be configured to directly connect to Home Assistant through MQTT autodiscovery.
Custom (open source) firmware can be uploaded through the USB-C port for experimentation, no need for special tools for flashing.
What you get:
- AV518-SP001: Sensirion SEN-66 Air sensor
- AV518-SP002: 3D printed enclosure front
- AV518-SP003: 3D printed enclosure back
- AV518-SP004: WeAct 2,9'' ePaper display including driver board

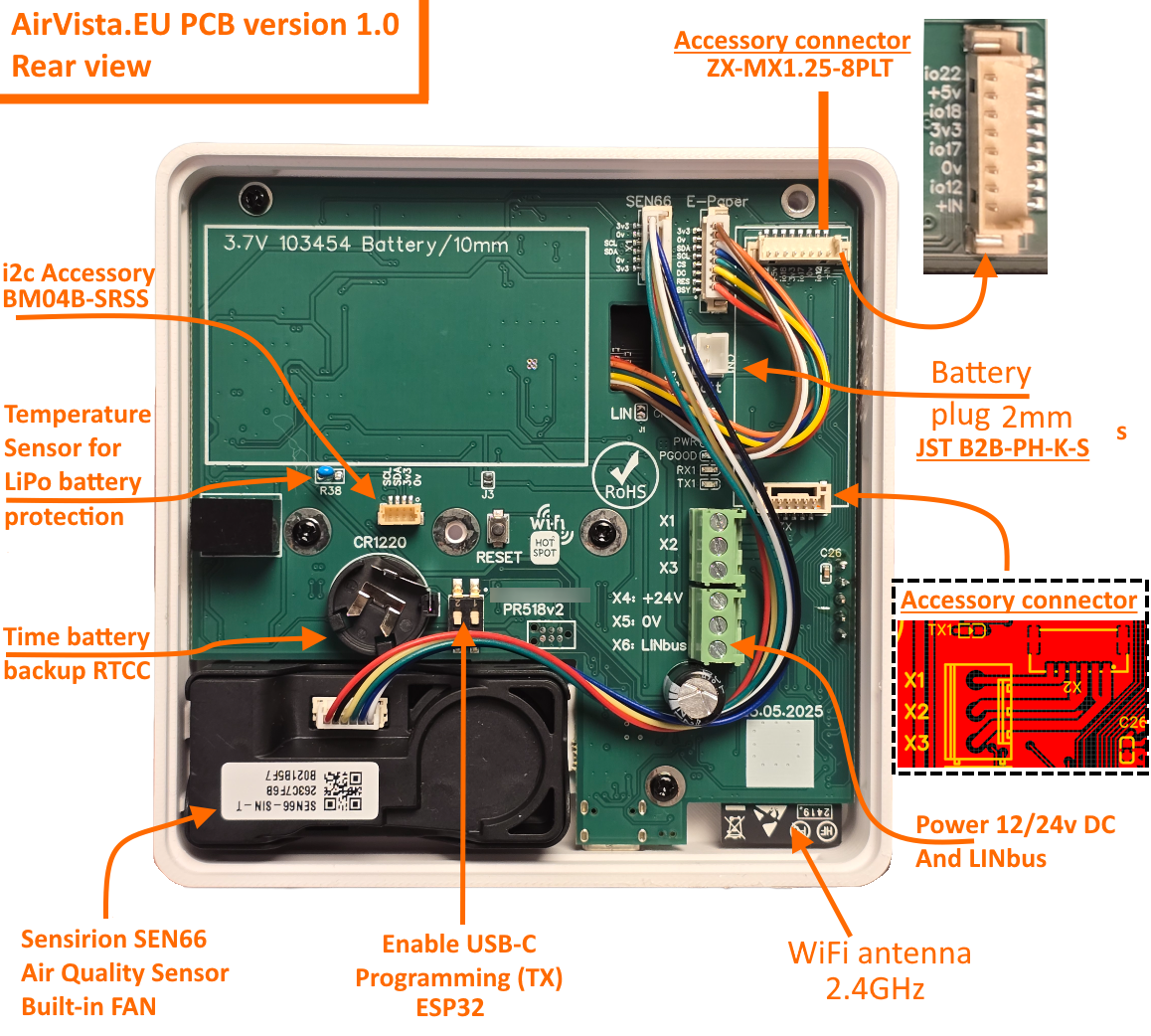

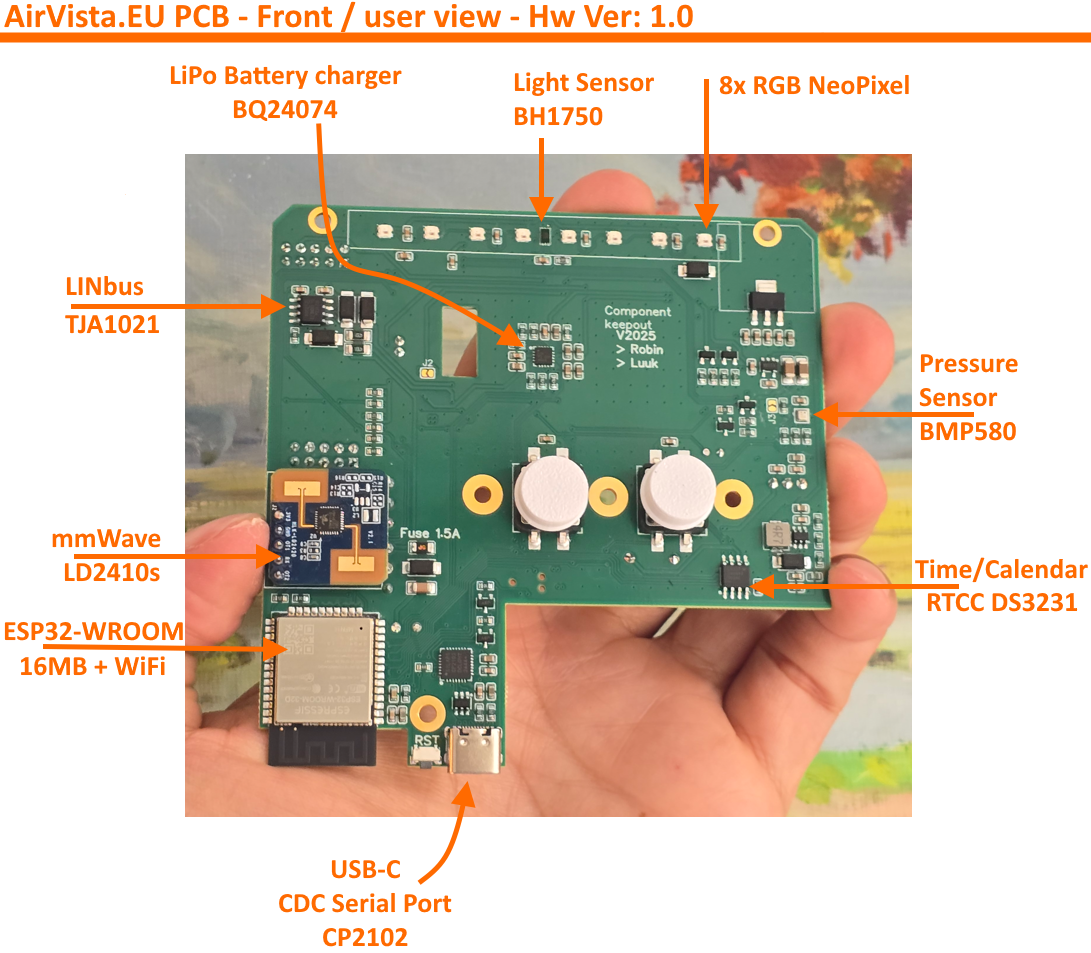

- AV518-SP005: Fully assembled AirVista mainboard PCB + mounting screws
- AV518-SP006: Connecting cable (6pin) for SEN-66 to mainboard.
- AV518-SP007: Connecting cable (8pin) for ePaper to mainboard.
What is not included
- AV518-SP008: No coin cell CR1220 is included
- Coin cell is not required for operation.
- AV518-SP009: No Li-Po battery included:
- EEMB Li-Po 3,7 V 2000mAh type 103454.
- Can be ordered at Amazon for around 10 euro.
- Li-Po battery is only required if you want to use the device portable. AirVista functions perfectly using only USB-C power.
FAQ
-
Why is there no battery included?
- All major shipping companies have strict rules when shipping LiPo batteries. Shipping LiPo makes it much more expensive while you can buy these common batteries at Amazon worldwide.
-
Is the software open source?
- The AirVista can be freely programmed over the USB-C port. You can create your own software using Arduino or use any public open source software to program the device with. The current AirVista source code is not open source, but is planned to do so.
